Bad Spindle Symptoms and How to Replace It (What Is a Spindle?) – Full Guide

In automotive and mechanical engineering, the spindle is an essential but often overlooked component.

Whether you’re a DIY car enthusiast, a professional mechanic, or simply someone looking to understand more about your vehicle, knowing what a spindle is and how to replace it can save time, money, and potentially prevent serious damage.

Have you ever heard strange noises when turning or felt uneven tire wear? These could be signs of a failing spindle—an often overlooked but critical part of your suspension system

This article covers everything you need to know about Steering Knuckle, including their function, types, symptoms of failure, and a step-by-step replacement guide.

What is a Spindle?

The spindle plays a crucial role in your vehicle’s suspension and steering system, acting as the central component that connects and supports key parts like the wheel hub, bearings, and steering knuckle, allowing your wheels to turn smoothly and safely.

In simple terms, it is the component that connects the vehicle’s wheel to the steering system, allowing for rotation and directional control.

It plays a key role in holding the wheel hub and bearings securely in place, and in some vehicles, it also helps support parts of the braking system.

The Steering Knuckle serves as the central support where the wheel is mounted, and it also plays a crucial role in maintaining proper vehicle alignment and ensuring smooth, responsive handling while driving.

In most front-wheel-drive vehicles, spindles are found at the front wheels, integrated with the steering knuckle. In rear-wheel-drive cars, you may also find them at the rear, especially in solid axle configurations.

Functions of a Spindle:

• Support the Wheel Hub: The spindle supports the wheel hub and allows it to rotate freely around the axle.
• Steering and Handling: It connects to the steering system, enabling the wheels to turn left or right.
• Brake Assembly Mount: Often provides a mounting point for brake calipers or drums.
• Load-Bearing Function: This component plays a crucial role by supporting the entire weight of the vehicle and efficiently transferring that weight down to the wheels, ensuring a stable and balanced ride.

Types of Spindles:

There are various types of spindles depending on vehicle design and function:

Drive Spindles: Found in drive axles, they transfer torque from the drivetrain to the wheels.

Non-Drive Spindles: Usually in non-driven wheels, mainly used for steering and support.

Drop Spindles: These are modified pivot arm used to lower a vehicle’s ride height without affecting suspension geometry.

Live Spindles: Rotate with the wheel and axle.

Dead Spindles: Fixed spindles that do not rotate; the wheel rotates around them.

May you read more

Symptoms of a Bad or Failing Spindle:

Being attentive to the subtle cues your spindle provides can be a game-changer for both you and your workshop. Even if you’re uncertain about a potential issue, it’s wise to investigate further.

– **Vibrations or Wobbling Wheels** – Often the first sign.
– **Uneven Tire Wear** – Caused by misalignment.
– **Steering Problems** – Difficulty turning or strange noises.
– **Brake Rotor Misalignment** – A warped rotor may point to spindle issues.

Early detection of pivot arm problems can help you steer clear of challenges such as unexpected downtime, costly repairs, or compromised product quality.

By recognizing and addressing these warning signs promptly, you can maintain smooth operations and ensure your equipment stays in top condition.

• Uneven Tire Wear: Misalignment due to spindle damage can wear out tires prematurely.
• Steering Problems: Difficulty turning the wheel or delayed response.
• Vibrations: Excessive vibration from the wheels during driving.
• Noise: Clunking or grinding noises, especially when turning.
• Visible Damage: Cracks, rust, or bends in the pivot arm upon inspection.
• Unscheduled Downtime: Sudden halts in production disrupt schedules and decrease overall efficiency.Lean Manufacture
• Expensive Repairs: Emergency fixes often cost more than planned maintenance, straining budgets.dataPARC+2MaintBoard CMMS+2Coast+2
• Costly Replacements: Severe damage may necessitate replacing entire machines, leading to significant expenses.
• Injuries: Malfunctioning equipment can pose safety risks, potentially causing workplace accidents.
• Poor Product Quality: Inconsistent operations may result in defects, affecting product standards.
• Dissatisfied Customers: Delays and quality issues can erode customer trust and satisfaction.
• Machine Damage: Continuous strain without proper maintenance accelerates wear and tear.
• Longer Rebuild Times: Extensive damage requires more time to repair, prolonging downtime.
• More Extensive Damage: Neglecting minor issues can lead to larger, more complex problems over time.

Proactively addressing maintenance and monitoring equipment health can mitigate these risks, ensuring smoother operations and sustained productivity. Lean Manufacture

upper control arms can affect your ride, a damaged pivot arm causes major alignment issues

Why Do Spindles Fail?

The lifespan of a steering knuckle can vary significantly based on factors like usage intensity, maintenance practices, and operating conditions.

For instance, steering knuckles used in extreme environments or under continuous, high-intensity operations may wear out faster, while those used intermittently and maintained properly tend to last longer.

For example, a surface grinder that operates at 1,700 RPM could have a lifespan of up to 20 years, while an internal diameter (ID) grinding spindle running at 120,000 RPM might only last about three years due to its higher speed and wear rate.

Countless external elements and variables contribute to spindle wear, making it impossible to cover them all here. However, regularly monitoring and maintaining your equipment can help extend its service life and reduce the likelihood of severe failure.

Like any mechanical system, the moving components of a spindle tend to wear faster than the stationary ones. Premature spindle failures are frequently caused by external factors. Some common causes of spindle failure include:

• Contamination
• Insufficient lubrication
• Poor-quality lubricants
• Infrequent maintenance
• Mishandling of the machine
• Human error
• Overloading the machine
• Spindle imbalance
• Drawbar malfunction
• Bearing failure
• Improper machine use
• Inadequate chiller performance
• Damaged or worn tooling
• Electrical surges or short circuits
• Sensor malfunctions

By keeping an eye on these factors and addressing them promptly, you can avoid unexpected breakdowns and keep your equipment running smoothly.

Corrosion: Rust and environmental wear can weaken the steering knuckle over time.

How to Spot the Signs of Spindle Failure:

Spotting the early warning signs of spindle issues can help you avoid expensive repairs and unexpected downtime. Below are some friendly guidelines to help you identify potential issues. That said, always check with your machine’s OEM or a certified spindle repair service before making any repair decisions, especially if you’re not fully equipped or trained to handle it yourself.

1. Surface Finish Problems

Noticing chatter marks or rough finishes on your machined parts? That could be a red flag. Pay close attention to which axis is affected — for instance, if parts look fine along the X and Y axes but show chatter on the Z, the spindle might be to blame.

2. Parts Falling Out of Spec

When your products start missing their tolerances — whether it’s the dimensions, roundness, or taper — it’s time to investigate the steering knuckle. Consistent issues here often point to something going wrong behind the scenes.

3. Unusual Vibration

Some vibration is part of normal machining, but excessive vibration is hard to miss — you’ll see it, hear it, and probably feel it. If your machine suddenly starts shaking more than usual, take it seriously.

4. Abnormal Noise

Most modern spindles are fairly quiet, even at high speeds. So if your steering knuckle suddenly sounds louder or “off,” it’s worth a closer look. Strange noises often come hand-in-hand with vibration and could indicate internal wear.

5. Rising Temperatures

Spindle bearings are specially engineered to function efficiently within a specific temperature range, ensuring they perform at their best.

If things heat up beyond what’s normal for your setup, it could lead to bearing damage, lubrication breakdown, or alignment issues. If your machine is equipped with a spindle chiller, it can be a helpful tool in detecting temperature-related changes.

6. Spindle Taper Wear (Fretting)

Fretting can show up as visible wear or “bellmouthing,” where the taper wears out so much that the toolholder no longer fits snugly. If the toolholder starts sticking or rattling, it’s likely time for a closer inspection.

7. Increased Runout

During regular maintenance, keep an eye on runout at the tooling surfaces. Any noticeable increase is often a strong signal that your pivot arm needs attention.

8. Decreased Drawbar Force

If you see a drop in drawbar retention force during preventive maintenance, don’t ignore it. In some cases, servicing just the drawbar can fix the issue, potentially avoiding a complete pivot arm rebuild or the risk of a tool flying loose during operation.

9. Higher Spindle Load

Many CNC machines display spindle motor load. A sudden rise in values, despite the program running smoothly, might suggest there’s some resistance building up in the spindle.

Final Tip: Staying ahead of spindle problems starts with regular monitoring. The sooner you catch the signs, the better your chances of a quick, less costly fix.

Tools and Parts Required for Spindle Replacement

Before beginning replacement, gather the necessary tools and parts:

• New spindle
• Jack and Jack stand
• Socket set and wrenches
• Hammer and punch

• Grease

• New spindle

• Torque wrench
• Bearing grease
• Replacement bearings and seals (if needed)
• Pry bar or ball joint separator

Step-by-Step Guide: How to Replace a Spindle

Step 1: Safety First

To begin, ensure your vehicle is parked on a level surface to guarantee stability. Once it’s in place, engage the parking brake to prevent any unintended movement.

For added safety, make sure to place wheel chocks on the wheels opposite to the ones you’re working on. This will help provide extra stability and prevent the vehicle from rolling, ensuring a secure and safe environment while you work.

Step 2: Raise the Vehicle

Begin by carefully positioning a hydraulic floor jack under a strong, flat part of your vehicle’s frame—usually indicated in your owner’s manual.

Slowly pump the jack handle to raise the vehicle until the tire is completely off the ground. Once it’s lifted, always place jack stands underneath the vehicle for added safety.

Lower the jack slightly so the car rests securely on the stands before you start working underneath. Never trust the jack to solely support the vehicle—it’s unsafe. Always use additional support, such as jack stands, to ensure the vehicle is stable and secure while you’re working under it.

Please remember, the jack is designed just to lift the vehicle, not to hold it up for a long time.

Step 3: Remove the Wheel
Now that your vehicle is securely lifted and supported, it’s time to remove the wheel. This step gives you clear access to important components like the brake assembly, hub, and spindle.

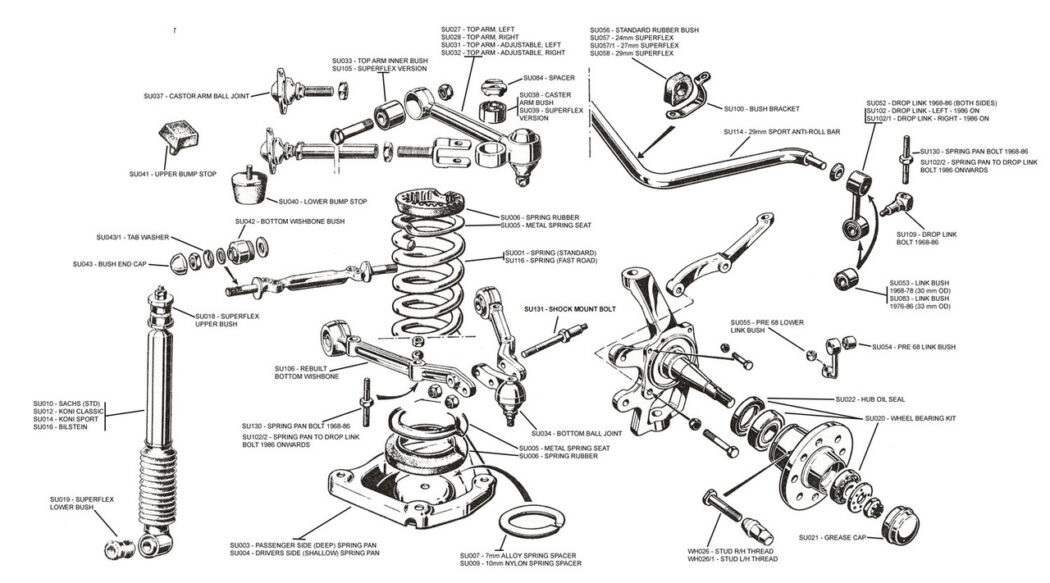

https://www.researchgate.net/figure/Front-suspension-components-The-locations-of-the-wheel-hubs-H-and-wheel-spindles-S_fig8_2317568

Here’s how to do it:

1. Loosen the lug nuts slightly while the wheel is still touching the ground—this prevents it from spinning.
2. Start by carefully raising the vehicle using a hydraulic jack until all necessary wheels are off the ground. Once lifted, securely place heavy-duty jack stands underneath the vehicle’s frame to keep it stable. Remember, your safety comes first—never crawl under a car that’s supported by just the jack alone, as it can slip or fail without warning.
3. Once the lug nuts have been loosened, gently unscrew them one at a time using your fingers or a lug wrench. Take your time and set each nut aside in a safe place so you don’t lose any. Be sure to place them in a secure spot, like a small container or tray, so they don’t roll away or get lost.
4. “Gently take off the wheel by grasping it firmly with both hands and pulling it straight outward from the hub, making sure to keep it level to avoid damaging the brake components or lug threads. Gently place it flat on the ground close to you, making sure it’s stable and won’t accidentally roll off or move around.

With the wheel out of the way, you’ll now have a clear view of the brake components, rotor, and spindle, which are essential for the next steps in your repair or inspection process.

Step 4: Remove the Brake Components
Now that you’re ready to access the suspension parts, it’s time to take off the brake components.

Begin by unbolting the brake caliper using the correct size socket or wrench. Once it’s loose, do not let it hang freely—this can put unwanted strain on the brake hose and potentially cause damage.

Instead, secure the caliper using a piece of wire, zip tie, or a sturdy hook, and hang it safely from the strut or another solid part of the vehicle.

Next, remove the brake rotor. It might slide off easily, but if it’s stuck due to rust or grime, gently tap it with a rubber mallet to loosen it. Avoid using excessive force or metal hammers, as that could crack or damage the rotor.

Take your time with this step, and double-check that everything is set aside safely before moving forward.

Step 5: Disconnect the Ball Joint and Tie Rod
Now that you’re this far into the job, it’s time to separate the ball joint and tie rod from the steering knuckle (or spindle). These parts can be a bit stubborn, so here’s how to do it safely and efficiently:

• Start with the tie rod:

Grab a wrench and carefully loosen the castle nut—or regular nut-that’s holding the tie rod end in place on the spindle. Once the nut is off, you might notice the tie rod doesn’t slide out easily—that’s normal.

• Use a tie rod separator or pickle fork:

Carefully insert the tool between the tie rod and the spindle, then give it a light tap with a hammer to release the joint. If you don’t have a separator, you can also try striking the side of the spindle near the hole where the tie rod goes in—this vibration often loosens the joint.

• Move on to the ball joint:

Remove the nut from the ball joint stud like the tie rod. Then, position your ball joint separator or pickle fork between the ball joint and spindle, and tap it until it separates.

⚠️ Pro Tip: Be patient and avoid using excessive force. If you strike the components too hard or at the wrong angle, you could damage the spindle or tear the rubber boots.

By the end of this step, both the tie rod end and ball joint should be fully disconnected from the spindle, giving you clear access to remove or replace parts as needed.

Step 6: Remove the Spindle
Now that you’ve disconnected the necessary components, it’s time to take off the spindle. Gently slide the spindle away from the axle shaft.

In some vehicles, the spindle might be secured with bolts or fasteners—if so, use the appropriate tools (like a socket wrench or ratchet) to loosen and remove them. Be sure to keep those fasteners in a safe spot in case you need them later.

Once everything is free, slowly wiggle and pull the spindle off. Take your time with this step—avoid forcing anything to prevent damage to nearby parts.

Step 7: Inspect and Clean
Take a moment to carefully examine all the nearby components, such as wheel bearings, seals, and mounting surfaces.

Take a close look for any signs of damage, such as wear, cracks, or leaks.  If everything looks intact, use a clean rag or soft brush to thoroughly clean the entire area, removing any built-up dirt, grease, or debris.

A clean working space not only makes reassembly easier but also helps extend the life of your parts by preventing contamination.

Step 8: Install the New Spindle
Carefully position the new spindle into place, ensuring it aligns correctly with the surrounding components. Once it’s in the right spot, reattach all the parts that were removed earlier, making sure each one is securely connected to restore the system to its proper function.

Step 9: Torque Fasteners
Take a torque wrench and carefully tighten all the bolts to the exact specifications provided by the manufacturer.

This step is crucial for ensuring the fasteners are securely in place without being over-tightened or under-tightened, which could lead to damage or instability. Make sure to follow the recommended torque values closely for optimal safety and performance.

Step 10: Reassemble and Test

After finishing the required fixes or part replacements, you’re ready to reassemble everything and wrap things up. Begin by reinstalling the rotor, followed by the caliper, ensuring all components are securely fastened.

Afterward, place the wheel back on and tighten the lug nuts to the proper torque specifications. Carefully lower the vehicle from the jack or lift, making sure everything is stable.

Before concluding the process, take the vehicle for a test drive to ensure everything is functioning properly. Pay close attention to the alignment, braking performance, and overall handling to verify that the job has been done correctly.

Aftercare and Tips

• Wheel Alignment: Following the replacement of your spindle, it’s crucial to perform a wheel alignment. This ensures your vehicle’s steering and suspension systems are properly aligned, which helps prevent uneven tire wear and improves overall driving performance.
• Lubrication: Always opt for premium grease when lubricating the bearings. Using high-quality grease not only enhances the smooth operation of the spindles but also extends their lifespan by preventing rust and reducing friction.
• Regular Inspections: Make it a habit to conduct routine inspections of your spindles. Check for any signs of wear, tear, or damage to ensure everything is functioning properly. Catching issues early can prevent more severe damage down the road.

“What is a Spindle and Bad Spindle Symptoms and How to Replace It: A Complete Guide”

Conclusion:

Ignoring bad spindle symptoms can lead to costly repairs and serious accidents. Inspect early, act quickly, and drive safely! If you need a trusted replacement, check out our recommended spindle kits link.

Frequently Asked Questions (FAQs)

Q1: What are the risks of driving with a broken spindle?
If a spindle breaks, it can cause the wheel to loosen or even come off entirely, which may result in a dangerous loss of control while driving. It’s a serious safety hazard and should be fixed immediately.

Q2: How many miles does a car spindle typically last?
A car spindle can last over 100,000 miles if the suspension and bearings are well-maintained. However, off-road driving or neglecting worn parts can shorten its lifespan.

Q3: Is it dangerous to drive with a bad or bent spindle?
Yes, driving with a damaged spindle is dangerous. It affects wheel alignment, handling, and braking, making the vehicle unsafe on the road.

Q4: Can I replace a car spindle myself at home?
If you’ve got the right tools and a bit of mechanical know-how, you can definitely replace a spindle yourself at home. However, it’s best to have it done by a professional due to the precision required for safety.
