How to Install a Cotter Pin on a Castle Nut: A Comprehensive Guide

How to Install a Cotter Pin on a Castle Nut: A Comprehensive Guide

Getting Started: Why Cotter Pin Installation Matters

Cotter Pin Installation

If you’ve ever worked on machinery or vehicles, you’ve likely encountered a cotter pin. This small, seemingly simple component plays a crucial role in securing castle nuts, ensuring that critical parts stay in place during operation.

To install a cotter pin, align the hole in the bolt with the slots in the castle nut, insert the pin through, and bend the ends to lock it securely in place. However, the method of bending and positioning the pin can significantly impact the safety and longevity of the assembly.

In this guide, we’ll walk you through the step-by-step process of installing a cotter pin on a castle nut, highlighting best practices and common pitfalls. Whether you’re a seasoned mechanic or a DIY enthusiast, understanding the correct installation technique is essential for ensuring the reliability of your mechanical connections.

For a visual demonstration of proper cotter pin installation, see How to Install a Cotter Pin on a Castle Nut. Check out this informative video:

https://www.youtube.com/watch?v=QSfwTsrxP_c

Understanding Cotter Pins and Castle Nuts

Cotter pins—often called split pins—are small but important parts that help hold mechanical pieces together safely and securely.

They are designed to secure other fasteners, such as nuts and bolts, preventing them from loosening due to vibration or movement. Typically made from soft metals like mild steel or brass, cotter pins are easy to install and remove, making them a go-to choice for many applications.

🛠️ What Exactly Is a Cotter Pin?

A cotter pin is a small metal pin with two ends that you bend to hold parts together securely. You insert it through a hole and then bend the prongs to keep it securely in place. It resembles a bent wire with a loop at one end, much like a hairpin.

The pin is inserted through a hole in a bolt or shaft, and the tines are then bent outward to secure it. This simple mechanism ensures that the connected parts remain tightly fastened, even under stress or vibration.

🔩 Common Uses of Cotter Pins

    • Cotter pins are popular across many industries because they’re easy to use and provide dependable fastening. Their simple design allows for quick installation and removal, making them a go-to choice for securing components in everything from vehicles to machinery. Some common applications include:
  • Automotive: Securing wheel hubs and other critical components.
  • Aerospace: Ensuring the integrity of flight control systems.
  • Machinery: Locking nuts on rotating shafts.
  • Agriculture: Fastening parts in farming equipment.Merriam-Webster
  • Cotter pins are versatile fasteners suitable for both heavy-duty and light-duty applications. Their adaptability makes them ideal for a wide range of uses, from securing components in machinery to fastening parts in vehicles.

Whether you’re working on a construction project or maintaining equipment, cotter pins provide a reliable solution for keeping parts securely in place.

Can Your Read More

🧰 Types of Cotter Pins

A promotional graphic displaying cotter pins, divided into two sections. The left side features images of cotter pins being used in automotive applications, while the right side lists various sizes of cotter pins, along with their quantities per pack. The header reads "Wide Application" on the left and "Various Sizes" on the right.

There are several types of cotter pins, each designed for specific uses:
  • Standard Split Pins: The Most Common Type
  • Standard split pins, also known as cotter pins or split cotter pins, are among the most widely used fasteners in mechanical assemblies. Their simple design and reliable performance make them a go-to choice for securing components in place. globalfastener.com+4RS Online+4RS Components+4
  • Design and Functionality
  • A standard split pin typically consists of a cylindrical metal shaft with two tines that are bent during installation. The pin is inserted through a hole in a component, and the tines are bent outward to prevent the pin from coming loose.
  • Materials and Variants
  • Standard split pins are commonly made from materials like mild steel, stainless steel, brass, or aluminum. The material you pick depends on where and how it’s going to be used.
  • For instance, stainless steel split pins offer corrosion resistance, making them suitable for marine or outdoor applications. Brass split pins, on the other hand, are often used in decorative applications due to their aesthetic appeal.
  • Question AI+1tengri.en.made-in-china.com+1
  • Applications
  • These pins are versatile and can be found in various industries, including automotive, aerospace, agriculture, and construction. They are commonly used to secure clevis pins, castellated nuts, and other components that require a reliable locking mechanism. iiibearfastener, Wikipedia
  • Installation Tips
  • Choose the Right Size: Ensure the split pin matches the hole diameter and length requirements.
  • Insert Fully: Push the pin through the hole until the head is flush against the surface.
  • Bend Tines Securely: Use pliers to bend the tines outward, ensuring they are firmly in place.
  • Trim Excess Length: If necessary, trim the tines to prevent them from catching on other components.

Understanding Extended Prong Cotter Pins

  • Extended prong cotter pins are a specialized type of cotter pin designed to simplify the installation process. Unlike standard cotter pins with two equal-length prongs, extended prong cotter pins feature one prong that is longer than the other. This design enhancement makes it easier to separate the prongs during installation, improving efficiency and reducing the risk of damage to the pin. Home Improvement Way
  • The longer prong is typically slightly curved or beveled, allowing it to overlap the shorter prong. This overlap facilitates easier insertion into the hole and ensures a secure fit once the prongs are bent. AutoRestorer+Wikipedia
  • These cotter pins are commonly used in various applications, including securing clevis pins and locking components in place, particularly in environments where ease of installation and reliability are paramount.

Can Your Read More

🔧 R-Clip Pins: The Unsung Heroes of Quick-Release Fastening

  • R-Clip Pins, also known as hairpin cotter pins, retaining clips, or hitch pin clips, are versatile fasteners that play a crucial role in various applications. Their unique “R” shape allows for quick and secure retention of components, making them indispensable in numerous industries.The Citrus Report+Wikipedia+hariomespring.com+Coil Springs Direc
What Are R-Clip Pins?
  • An R-Clip Pin is a springy metal fastener shaped like the letter “R“. It’s designed to fit into a hole near the end of a shaft, with the straight leg passing through the hole and the curved leg snapping over the shaft, holding it securely in place. This design allows for easy installation and removal without the need for tools, making it ideal for applications requiring frequent assembly and disassembly. Handwiki + Wikipedia + Uni Circle Fasteners Sdn Bhd +  hariomespring.com
  • Common Applications of R-Clip Pins
  • Automotive Industry: Used to secure components like hitch pins, ensuring parts stay in place during operation.
  • Agricultural Machinery: Retain parts on equipment, preventing accidental dislodgement during use.The Citrus Report
  • Construction: Hold scaffolding and other temporary structures together, providing stability and safety.The Citrus Report
  • DIY Projects: Ideal for hobbyists and crafters needing a reliable and reusable fastening solution.
  • Advantages of Using R-Clip Pins
  • Quick and Tool-Free Installation: Easily insert and remove without specialized tools, saving time and effort.
  • Reusable: Unlike cotter pins, R-clips can be used multiple times without compromising their effectiveness.Thomas Potter+4Coil Springs Direct+4Stainless Steel Fastener+4
  • Secure Hold: The spring tension ensures a firm grip, preventing accidental loosening.Coil Springs Direct
  • Versatility: Suitable for a wide range of applications, from heavy machinery to everyday DIY projects.Coil Springs Direct
  • Choosing the Right R-Clip Pin
  • When selecting an R-Clip Pin, contemplate  the following factors:
Material: Choose between stainless steel for corrosion resistance or zinc-plated steel for general use.

 Make sure the pin is the right diameter to fit snugly into the hole you’re using it for.

 Coil Type: Single coil R-clips work well for everyday jobs, but if you need something tougher, double coil R-clips are a stronger choice for heavy-duty tasks.Yayse+2Thomas Potter+2TorqBolt+2

By understanding these factors, you can select the appropriate R-Clip Pin to ensure a secure and reliable fastening solution for your needs.

Can Your Read More

🔧 Step-by-Step Guide to Installing a Hammerlock Pin

Gather Your Tools and Components
  • You’ll need the two halves of the hammerlock, a locking collar (or bushing), a load pin, a punch, and a hammer or mallet. Make sure every part is clean and in perfect condition before use.
  • Assemble the Hammerlock Halves
  • Align the two halves of the hammerlock and insert the locking collar between them. Before installing the collar, ensure that its indented side is facing the pin.
  • Insert the Load Pin
  • Partially insert the load pin through the aligned holes of the hammerlock and the collar. This will hold the assembly together for the next step.
  • Secure the PIN
  • Align the two halves of the hammerlock body so that the center connectors are properly positioned..
  • Inspect the Assembly
  • Make sure all parts fit snugly together without any gaps or spaces between them.

💡 Pro Tips for a Smooth Installation

  • Lubricate the Pin: Applying a bit of grease to the load pin can make insertion easier and reduce friction.
  • George4x4 4WD Recovery Gear+2
  • Conveying & Hoisting Solutions+2
  • Regular Maintenance: Add oil to the middle bush every three months, or if you find it difficult to hammer in during installation. This helps prevent rust and extends the product’s lifespan.
  • George4x4 4WD Recovery Gear +1
  • Avoid Reversing Components: Ensure the two coupling links are connected correctly and not reversed, as improper assembly can compromise safety.

🧰 Tools & Materials You’ll Need

Before diving into the installation, gather the following:

     Hammerlock coupling link: This is the main component that connects chains or hooks.

   Load pin: Fits through the hammerlock to secure it.

       Locking collar: Holds the load pin in place.

       Punch or drift pin: Assists in driving the load pin.

       Hammer or mallet: For tapping the punch.

    Lubricant (optional): Reduces friction during installation.George4x4 4WD Recovery Gear+1George4x4 4WD Recovery Gear+1Ford Trucks+3George4x4 4WD Recovery Gear+3George4x4 4WD Recovery Gear+3

🛠️ Step-by-Step Installation

1.       Align the Hammerlock Halves

Align the Coupling Halves: Position the two halves of the coupling link so that their openings face each other and align perfectly. Following this approach helps maintain order and keeps things moving effortlessly.

2.       Insert the Load Pin

Slide the load pin into the aligned holes of the hammerlock, ensuring both sides are perfectly matched.

3.       Install the Locking Collar

Position the Collar: Place the locking collar so that the recessed side faces the direction where the pin will be inserted.

4.       Drive the Load Pin

Using a hammer or mallet, tap the punch to drive the load pin through the collar until it emerges on the other side of the hammerlock. This step secures the pin in place.

5.       Lubricate (Optional)

To ease the installation process, consider lubricating the pin with grease. This reduces friction.

Can Your Read More

⚠️ Tips for a Successful Installation

         Make Sure Everything Lines Up Just Right

When parts aren’t aligned correctly, putting them together can become a real challenge. Even worse, misalignment can weaken the entire setup, leading to potential issues down the road. Taking the time to align components properly ensures a smoother installation process and a stronger, more reliable connection.

Use the Right Tools: Using appropriate tools ensures safety and efficiency.

Regular Maintenance: Periodically check the hammerlock for wear and tear, and lubricate as needed to maintain smooth operation.

A castle nut, also called a castellated nut, is a special type of fastener designed to stay securely in place, even when exposed to vibrations or movement. It features slots or notches on one end, resembling the battlements of a medieval castle—hence the name.

These slots are carefully designed to align perfectly with a hole drilled through the bolt, allowing a cotter pin to pass through both. This setup ensures that the nut stays securely in place, preventing it from loosening due to vibrations or movement.

This setup locks the nut in place, preventing it from loosening due to vibrations or movement. This is a simple and reliable way to keep parts tightly in place. Once you’ve properly aligned the nut and bolt, securing them is straightforward.

Hole”: The term “hole” is more commonly used and easily understood compared to “pit. After insertion, bend the ends of the pin in opposite directions to lock everything firmly in place. This method ensures the assembly remains secure during operation.

Securing the assembly with a cotter pin is essential to prevent the nut from loosening during operation.

These simple steps. Install a cotter pin.

🛠️ How to Install a Cotter Pin

•            Installing a cotter pin is a straightforward task that helps secure nuts and bolts in place, preventing them from loosening over time. These easy  steps will ensure an Improper installation:

How to Install a Cotter Pin on a Castle Nut

1. Align the Components

Before inserting the cotter pin, ensure that the bolt or nut is properly aligned with its corresponding hole. This alignment is crucial for the cotter pin to fit correctly and function as intended.

How to Install a Cotter Pin on a Castle Nut: visit moogparts.com

2. Insert the Cotter Pin

Place the cotter pin through the aligned hole in the bolt or nut. Push it all the way through until the head of the pin rests against the surface.

3. Bend the Legs

Put the cotter pin through the pit in the bolt or nut until the looped head rests as opposed to the outside. Then, use pliers to gently bend the two prongs around the bolt or nut, ensuring they are securely fastened.

4. Trim Excess Length

If the legs of the cotter pin are too long after bending, use wire cutters to trim the excess length. Be cautious not to cut too close to the bends to maintain the pin’s effectiveness.

5. Check for Security

Once installed, lightly pull on the cotter pin to confirm it’s properly secured.

Grip the Pin’s Prongs: Hold the two prongs of the pin gently with your pliers.

Secure the Prongs: Carefully bend one prong downward so it rests flat against the surface, and curve the other prong around the end of the axle.

Ensure a Secure Fit: This positioning keeps the pin firmly in place, preventing it from slipping out.

This method ensures a secure fit, preventing the pin from loosening over time.

This simple step ensures the safety and reliability of your assembly. This secures the pin in place, preventing the nut from loosening and ensuring the assembly remains tight and safe.

This pin acts as a safety mechanism, ensuring the nut remains securely in place and doesn’t loosen over time. After insertion, the ends of the cotter pin are bent outward to lock it in position, effectively preventing any movement or rotation of the nut.

This setup effectively locks the nut in place, preventing it from loosening due to vibrations or movement. It’s a simple and reliable method to ensure that the assembly remains secure during operation.

What sets it apart is the row of notches carved into one end, mimicking the crenellated top of a medieval castle wall—hence its name.

🛠️ Understanding Castle Nuts:

A castle nut, also known as a castellated nut, is a type of fastener designed to secure components in place, especially in situations where vibration or movement could cause a standard nut to loosen.

Its distinctive feature is the series of slots cut into one end, resembling the battlements of a medieval castle—hence the name.

🔧 What Makes Castle Nuts Special?

A castle nut is a type of fastener with notches on one end, resembling the battlements of a castle. These notches are specifically designed to accommodate a cotter pin, forming a reliable locking mechanism that prevents the nut from loosening.

When you tighten a castle nut onto a bolt or shaft, you’ll notice that the notches on the nut align with a corresponding hole in the bolt. To keep everything securely in place, you insert a cotter pin through these aligned openings.

Next, use pliers to bend the ends of the cotter pin around the castle nut, securing it in place and preventing any movement.

This effective combination keeps the nut firmly in place, even in applications subject to vibrations or movement, making it an excellent choice for situations where safety and stability are critical.

A cotter pin is then inserted through the slot and the hole, and its ends are bent to secure the assembly. This locking mechanism prevents the nut from rotating and coming loose, providing a reliable and secure fastening method.

🛠️ How Castle Nuts and Cotter Pins Function Together

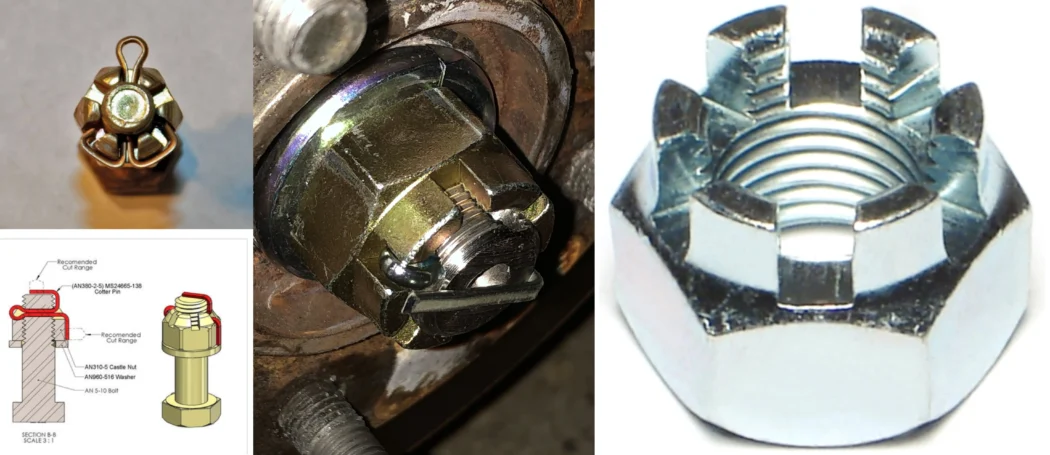

 An image featuring two metal fasteners: a castle nut and a bolt secured with a cotter pin. The text "Castle Nuts" and "Cotter Pins" is prominently displayed at the top. The fasteners are shown on a plain background, highlighting their design and functionality.

Castle Nuts and Cotter Pins Function

The cotter pin acts as a locking mechanism. Once the castle nut is tightened to the correct torque, the cotter pin is inserted through the aligned slot and hole, then its ends are bent to secure the nut in place. This setup ensures that the nut cannot rotate, even under conditions of vibration or movement.

⚙️ Common Uses for Castle Nuts

You’ll find castle nuts in various applications where safety and reliability are paramount, such as:

•           Automotive: Securing wheel bearings and suspension components.

•           Aviation: Locking critical flight control assemblies.

•           Machinery: Holding together parts that experience rotational forces.Reddit

Their design ensures that critical connections remain intact under conditions of stress and vibration, making them an essential component in various mechanical assemblies.

📝 Quick Recap

•           Castle nuts have slots resembling a castle’s battlements.

•           They work with cotter pins to prevent loosening.

•           Commonly used in applications subject to vibration.Wikipedia

Understanding the role and proper installation of castle nuts is crucial for anyone working with mechanical assemblies. Their unique design provides a simple yet effective method for securing components, ensuring safety and reliability in various applications.

🧰 Essential Tools and Materials for Installing a Cotter Pin on a Castle Nut

Before you begin the installation process, gather the following tools and materials to ensure a smooth and efficient experience:

1. Cotter Pin

A cotter pin is a straightforward but essential fastener that keeps nuts from becoming loose over time goes by. They come in various sizes and materials, so it’s important to choose one that fits snugly into the hole of your bolt or shaft and is suitable for your specific application. For example, the Neiko 50457A Cotter Pin Assortment Kit offers a variety of sizes to choose from.

2. Castle Nut

A castle nut, sometimes called a castellated nut, is a unique fastener that features notches or grooves on one end, giving it a shape similar to a castle’s battlements. These special notches help secure the nut in place, making it a reliable choice for various applications.

These notches allow for the insertion of a cotter pin, which locks the nut in place and prevents it from loosening due to vibrations or movement.

When using a castle nut, it’s essential to ensure that it matches the size and threading of your bolt or shaft. This compatibility guarantees a secure and reliable fit, enhancing the safety and performance of your assembly.

3. Torque Wrench

 A torque wrench ensures the castle nut is tightened to the manufacturer’s specified torque value, critical for safety and performance. Tightening something too much or too little can cause parts to break or stop working properly. The Amazon Basics 1/4-Inch Drive Click Torque Wrench is a reliable tool for precise torque applications.

4. Pliers

A good pair of pliers, such as needle-nose or duck-bill pliers, is essential for bending the ends of the cotter pin after insertion. They supply the control and grasp needed to bend the pin firmly without damaging it.

5. Hammer (Optional)

A hammer can be helpful for gently tapping the cotter pin into place if it doesn’t slide in easily. It’s also useful for ensuring the bent ends of the pin are snug against the nut and bolt, preventing any movement. The Stanley Tools Fibreglass Club Hammer 1000g is a durable choice for such tasks.

By having these tools and materials on hand, you’ll be well-prepared to install a cotter pin on a castle nut effectively and safely. Remember, using the right tools not only makes the job easier but also ensures the longevity and reliability of your mechanical assemblies.

Step-by-Step Installation Guide

1: Aligning the Castle Nut with the Bolt Hole

After you’ve tightened the castle nut to the manufacturer’s specified torque, it’s crucial to ensure that one of the slots (the “castellations”) aligns perfectly with the hole drilled through the bolt or shaft. This alignment is essential for the proper insertion of the cotter pin, which prevents the nut from loosening over time.xinchi + moogparts.com

Here’s how to achieve that perfect alignment:

1.  Torque to Specification: Using a reliable torque wrench, tighten the castle nut to the recommended torque value. This confirms that the nut is firmly fastened without over-tightening, which could damage the Grooves or the part.

2.  Check Slot Alignment: Once torqued, inspect the alignment between the nut’s slots and the bolt’s hole. If they align, you’re ready to insert the cotter pin.

3.  Adjust if Necessary: If the slots don’t align with the hole, do not loosen the nut. Instead, gradually tighten the nut slightly further until the next slot aligns with the hole. This method is widely recommended to maintain the integrity of the fastening system.

Important Tips:
  • Avoid Loosening: Never back off or loosen the castle nut to achieve alignment. Loosening can compromise the clamping force and may lead to component failure.
  • Use Proper Tools: Always use a torque wrench for precise tightening. Avoid using impact tools, as they can over-torque and damage components
  • Consult Manufacturer Guidelines: Always refer to the specific torque values and installation procedures provided by the component or vehicle manufacturer.

By following these steps, you’ll ensure a secure and reliable installation of the castle nut and cotter pin, maintaining the safety and performance of your mechanical assembly.

2: Insert the Cotter Pin

Once you’ve aligned the slots of the castle nut with the Bore in the bolt or shaft, it’s time to fasten the joint with a cotter pin. Slide the cotter pin through the aligned slot and pit until its circular head rests snugly against the surface of the nut. This ensures that the pin is fully seated, providing the necessary security to prevent the nut from loosening during operation.

YouTube + fordbarn.com

🔧 Bending the Cotter Pin Ends: A Friendly Step-by-Step Guide

Cotter pin installation guide showing tools and step-by-step cartoon instructions for bending and securing a cotter pin onto a castle nut.

Bending the Cotter Pin

Secure the Pin: Using pliers, bend the split ends of the cotter pin in opposite directions around the nut. This action locks the pin in place, preventing the nut from turning or loosening during operation. Here’s how to do it:

🛠️ Standard Method: The Reliable Approach

1.     Identify the Longer Leg: Cotter pins typically have one leg longer than the other.

2.     Bend the Longer Leg: Using pliers, bend the longer leg over the top of the bolt or shaft. This creates a secure hold and prevents the pin from backing out.

3.     Secure the Shorter Leg: Carefully bend the shorter leg of the cotter pin downward so it lies snugly against the nut. This ensures the pin stays firmly in place and prevents it from interfering with nearby components.

4.     Trim Excess Length: If necessary, trim any excess length from the bent legs to prevent them from catching on anything or causing injury.

This method is widely accepted and provides a secure fastening for most applications.

🔄 Alternative Method: For Tight Spaces

In situations where space is limited or the standard method isn’t feasible:

1.     Bend Both Legs Over the Top: Bend both legs of the cotter pin over the top of the bolt or shaft.

2.     Ensure Secure Fit: Make sure the bent legs are snug against the bolt to prevent movement.

3.     Trim as Needed: Trim any excess length to avoid interference with other components.

This alternative method is useful in confined spaces but may not provide the same level of security as the standard method.

✂️ Final Touch: Trimming the Cotter Pin Ends

Once you’ve securely bent the cotter pin to lock the castle nut in place, it’s essential to address any excess length. Leaving protruding ends can pose safety risks, such as catching on clothing or nearby components.

Here’s how to do it safely:

1.     Assess the Excess: After bending the cotter pin, check if any part extends beyond the nut or bolt.

2.     Choose the Right Tool: Use a pair of sharp side cutters or diagonal pliers for a clean cut. Cotter Pin on a Castle Nut repairing Shop Press. Repairing shop in the USA + Model T Ford Club of America

3.     Trim Carefully: Snip off the excess length, ensuring the remaining ends are flush with the nut or bolt surface.

4.     Smooth the Edges: If necessary, use a file to smooth any sharp edges, preventing potential snags or injuries.

🚫 usual fault to Avoid During Cotter Pin Installation
❌ Mistake: Loosening the Castle Nut to Align the Cotter Pin Hole

One of the most frequent errors is loosening the castle nut to align its slot with the hole in the bolt or shaft. This practice can compromise the integrity of the assembly, leading to potential safety hazards.

✅ Correct Approach: Slightly Tighten to Achieve Alignment

Torque to Specification: Begin by tightening the castle nut to the manufacturer’s recommended torque value. This ensures the necessary clamping force is applied.

This approach ensures that the cotter pin can be inserted correctly, securing the nut in place and maintaining the safety and reliability of the assembly.

MV Maintenance & Repair Stack Exchange

While it might seem tempting to reuse a cotter pin, especially when you’re in a pinch, it’s essential to understand why this is not advisable.

Why Reusing Cotter Pins Is Risky:
  • Material Fatigue: Each time a cotter pin is bent, the metal undergoes stress. Repeated bending can weaken the pin, making it more susceptible to breaking under pressure.
  • Compromised Safety: A weakened cotter pin may fail to secure the castle nut properly, leading to potential loosening of critical components. Neglecting proper maintenance can lead to equipment breakdowns, creating serious safety risks for everyone involved.
  • Inconsistent Performance: Reused pins may not fit as snugly as new ones, leading to improper installation and unreliable fastening.
Industry Recommendations:

Experts across various fields, including automotive and aviation, strongly advise against reusing cotter pins. For instance, the Monroe Engineering FAQs state that cotter pins should not be reused due to the weakening effect of repeated bending.OneMonroe

Anecdotal Insights:

In discussions among mechanics and enthusiasts, such as on the StromTrooper forum, many share experiences where reusing cotter pins led to issues like components loosening during operation.

Installing a cotter pin on a castle nut may seem straightforward, but improper installation can lead to component failure, safety hazards, and costly repairs. By recognizing and steering clear of common fastening errors, you lay the groundwork for connections that are both secure and dependable.

Read More

How to Use a Cotter Pin on a Wheel

Using a cotter pin on a wheel may sound like something only a mechanic would do—but trust me, it’s simpler than you think. Whether you’re maintaining a lawn mower, trailer, or even some cars, this little metal pin plays a huge role in keeping your wheels secure.

Let’s break it down in an understandable
and accessible way.

🚗 What is a Cotter Pin?

A cotter pin, also known as a split pin, is a small metal fastener that looks similar to a bobby pin. It’s inserted through a hole in a bolt, shaft, or castle nut to lock it in place and prevent loosening.

🔧 Why Use a Cotter Pin on a Wheel?

When you’re working with wheel assemblies, especially on trailers, lawn equipment, or small vehicles, the wheel is usually secured using a castle nut. That nut is secured onto a spindle or axle to keep the wheel stable and in place. However, here’s the catch: it may loosen over time due to all the bumps and turns. This is where a cotter pin comes in as a dependable safety precaution.
This ensures that:

The wheel doesn’t come off unexpectedly

The castle nut stays locked in its safe position

Maintenance is easy without needing special tools

🛠️ Tools You’ll Need

Before jumping into the how-to, grab these simple tools:

A cotter pin (size based on your nut and hole)

Needle-nose pliers

A flat-head screwdriver

Grease (optional but helpful)

Gloves for safety

✅ Step-by-Step Guide: How to Use a Cotter Pin on a Wheel

collage featuring three images: 1) A close-up of a cotter pin, 2) A detailed view of a cotter pin installed in a nut, and 3) A technical diagram illustrating the installation of a cotter pin with labeled components, including a castle nut and washer.

 Install a Cotter Pin on a Castle Nut

Let’s say you just changed your wheel bearing or greased the spindle. Now you need to lock everything back in place.

Step 1: Tighten the Castle Nut

Rotate the castle nut onto the spindle until it’s snug.

Don’t over-tighten! Spin the wheel a bit to make sure it’s not binding.

Step 2: Align the Slots with the Hole

The castle nut has notches or “slots.”

You’ll see a small hole through the spindle just behind the nut.

Gently adjust the nut—either by tightening or loosening it a little—until the slot is in line with the hole.

Step 3: Insert the Cotter Pin

Take your cotter pin and push it through the hole.

It should go all the way through, with the head sticking out on one side and the legs out the other.

Step 4: Bend the Legs

Using your pliers, bend the legs of the cotter pin outward.

One leg should fold around one side of the nut, and the other around the opposite side.

This secures it like a metal paperclip holding your nut in place.

Step 5: Trim Excess (Optional)

If the legs are too long and sticking out oddly, use cutters to trim them to size.

That’s it! The cotter pin is now installed, and your wheel is locked down, safe and secure.

✨ Bonus Tip: Grease is Your Friend

Before installing, adding a little wheel bearing grease on the threads and spindle can help prevent corrosion. It also makes future removals a lot easier.

Here’s a friendly, informative guide to help you navigate the process.

The Top 5 DIY Repairs Every U.S. Car Owner Should Know

  • Misaligning the Cotter Pin Hole

Mistake: Failing to align the cotter pin hole in the bolt with the slot in the castle nut before inserting the cotter pin.

Why It Matters: Misalignment can prevent the cotter pin from securing the nut properly, allowing it to loosen over time.

Solution: After tightening the castle nut to the specified torque, rotate it slightly (never loosen) to align the slot with the hole in the bolt. This alignment ensures the cotter pin can be inserted securely.

  • Incorrect Cotter Pin Insertion

Mistake: Inserting the cotter pin with the head rotated 90 degrees or leaving one leg straight.

Why It Matters: Improper insertion can lead to the cotter pin not holding the nut in place effectively, increasing the risk of loosening.

Solution: Insert the cotter pin with the head aligned with the slot in the castle nut. Both legs should be bent securely—one over the top of the bolt and the other down against the nut—to prevent the pin from slipping out.

  • Overbending or Underbending the Legs

Mistake: Bending the cotter pin legs too sharply or not enough.

Getting the bend just right on a cotter pin is crucial: bending it too much can weaken the pin, while not bending it enough might fail to keep the nut securely in place.

Solution: Bend the legs of the cotter pin to a comfortable angle that holds the nut securely without overstraining the metal.

  • Reusing Cotter Pins

Mistake: Reusing cotter pins instead of replacing them with new ones.

Why It Matters: Repeated bending can weaken the cotter pin, compromising its effectiveness.

Solution: Always use a new cotter pin when reinstalling a castle nut to ensure a secure fastening.

  • Failing to Trim Excess Pin Length

Mistake: Leaving excess length on the bent cotter pin legs.

Why It Matters: Excess length can catch on moving parts or cause injury.

Solution: Trim the bent legs of the cotter pin flush with the nut after bending to prevent any protrusions.

Helpful Reminder: Make it a habit to check your cotter pins during routine maintenance. If you notice any signs of wear, bending, or corrosion, it’s best to replace them promptly. Regular inspections help ensure that your equipment remains secure and functions safely.

By avoiding these common mistakes, you can ensure a secure and reliable fastening when installing cotter pins on castle nuts.

📦 Where to Buy Cotter Pins

You can get cotter pin sets online or at hardware stores. Make sure you buy the correct size based on your nut and hole diameter. Buy a Cotter Pin on a Castle Nut. Amazon, AutoZone, and Home Depot all carry assorted kits.

Can You Read More

“How to Install a Cotter Pin on a Castle Nut: A Comprehensive Guide”

Conclusion

Ensuring the correct installation of cotter pins is vital for the safety and dependability of mechanical systems. By adhering to proper techniques and avoiding common errors, you can keep components securely fastened, minimizing the likelihood of failures. Always utilize the correct tools and materials, and refer to the manufacturer’s instructions when uncertain.

FAQs
Q1: Can I reuse a cotter pin?

A1: No, cotter pins should not be reused. Bending and unbending the metal weakens it, potentially leading to failure. Always replace with a new cotter pin during maintenance.

Q2: What if the castle nut slot doesn’t align with the bolt hole after torquing?

A2: If alignment isn’t achieved after reaching the specified torque, slightly tighten the nut further to align the slot with the hole. This advice aligns with best practices in mechanical assembly, where maintaining proper preload is crucial for joint integrity.

Q3: Are there different types of cotter pins?

A3: All right, cotter pins come in many types, including standard split pins, hairpin cotter pins, and spring pins.

Q4: How do I choose the right size cotter pin?

A4: The cotter pin should match the diameter of the hole in the bolt or shaft and be long enough to allow for proper bending. Consult the manufacturer’s specifications or a sizing chart to select the appropriate size.

Q5: Can I use a nail or other substitute if I don’t have a cotter pin?

A5: While some may have used makeshift substitutes like nails in the past, this is not recommended. Proper cotter pins are designed to provide secure fastening and are made from materials suitable for the application. Using substitutes can compromise safety.

Q6: Can cotter pins be used in high-temperature settings?

A: Yes, but choose heat-resistant materials like stainless steel for such applications.

Q7: Is a hairpin cotter pin as strong as a regular one?

A: Hairpin cotter pins are easier to install and remove, but not ideal for heavy-load or high-vibration environments.

Conclusion

Ensuring the correct installation of cotter pins is vital for the safety and dependability of mechanical systems. By adhering to proper techniques and avoiding common errors, you can keep components securely fastened, minimizing the likelihood of failures. Always utilize the correct tools and materials, and refer to the manufacturer’s instructions when uncertain.

Leave a Reply

Your email address will not be published. Required fields are marked *

Join the Journey

You have been successfully Subscribed! Ops! Something went wrong, please try again.

Unlock the power of precision auto machining with expert techniques.Optimize your machinery for maximum efficiency and performance

Address

© 2023 Created with Royal Elementor Addons
