How much does it cost to repair a damaged or worn spindle?

Repairing a spindle is often a cost-effective alternative to replacement. Repairing a damaged or worn spindle is often a cost-effective alternative to purchasing a new one. Generally, repair expenses range from 30% to 45% of the cost of a new spindle, depending on factors such as the extent of the damage and the specific spindle model.

For instance, if a new spindle costs $20,000, repair costs can fall between $6,000 and $9,000. This approach offers significant savings and typically results in shorter lead times compared to sourcing a new spindle, thereby minimizing production downtime.

MZI Precision

It’s essential to consider the spindle’s age, the severity of the damage, and the availability of replacement parts when deciding whether to repair or replace. In many cases, especially when dealing with minor to moderate damage, opting for a repair can extend the spindle’s service life and maintain machine performance.

MZI Precision +1

If you need assistance finding a reputable spindle repair service or have further questions about the repair process, feel free to ask!

MZI Precision

To provide an accurate estimate, repair specialists rely on extensive databases of past repairs. By sharing your spindle’s make and model, they can offer a preliminary cost range. This initial estimate typically includes a minimum and maximum price, providing a clear understanding of potential expenses.

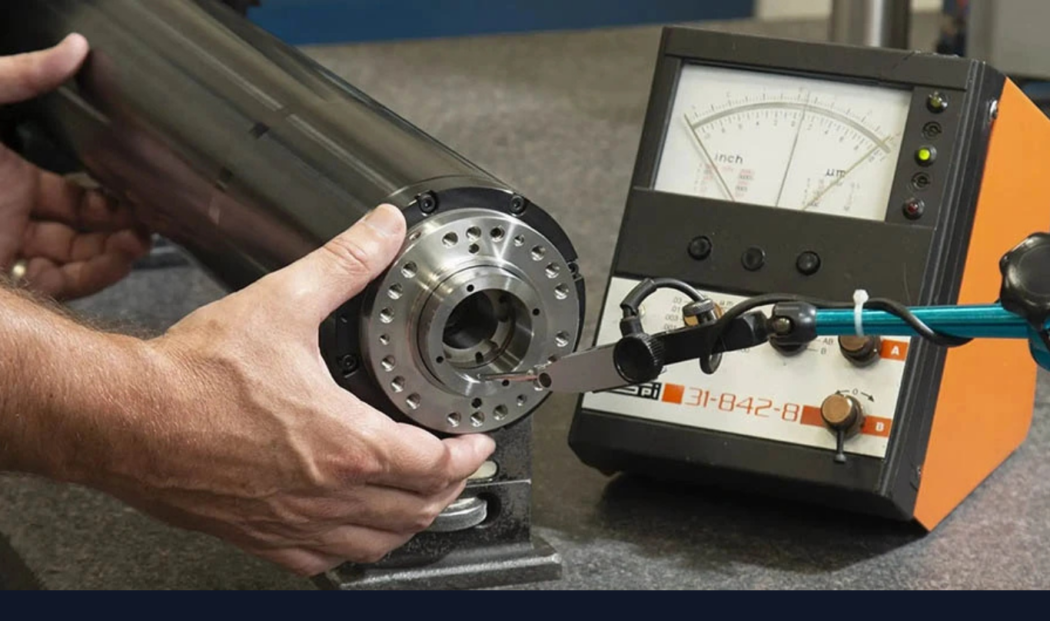

Once the spindle is received, technicians perform a thorough inspection, disassembling and cleaning each component to assess wear and damage.

Setco

 Once the evaluation is complete, you’ll receive a comprehensive report detailing the issues found, the recommended repairs, and a clear, fixed-price estimate. This estimate will cover labor, any necessary replacement parts—such as precision bearings—and any additional services required to restore your spindle to optimal performance

A nominal fee may be charged for the evaluation, which is typically applied toward the repair cost upon approval. With your consent, the repair process commences promptly, aiming to restore your spindle to optimal performance swiftly.

Many repair shops have built their reputations over decades by providing accurate estimates and quality service, ensuring your equipment returns to operation with minimal downtime.

For your estimate, fill out the Request a Repair Estimate form by clicking at the bottom of the page or call 800.686.1679 Monday–Saturday, 7 a.m.-4:30 p.m. ET.

Some Factors That Affect Spindle Repair Cost

1. Tool Interface Damage

The tool interface is the critical junction where your CNC spindle connects to the cutting tool. Over time, this area can suffer from wear, misalignment, or damage, which may compromise machining accuracy and tool retention. Addressing issues with the tool interface is essential to maintain optimal performance.

MZI Precision

Fixing or replacing a Broken instrument Link typically costs between $700 and $1,600, depending on factors such as the spindle’s make and Standard, the extent of the damage, and the specific components involved. This investment helps restore the spindle’s precision and prolong its operational life.

MZI Precision

If you’re experiencing issues with your spindle’s tool interface, it’s advisable to consult with a professional spindle repair service. They can assess the damage and recommend the most cost-effective solution to get your machinery back to optimal working condition.

MZI Precision+1

MZI Precision+1

MZI Precision+1

MDPI+1

2. Bearing Journal Issues

Bearings are essential for smooth spindle operation. Fixing harmful support journals on a spindle can, in particular, result in your general Service price. The charge for handling the bearing journal substance during spindle fix can vary based on the spindle’s dimensions and the difficulty of its bearing system. Usually, this Angle of the Fix may add between $400 and $1,400 to your Final amount.

The specific cost within this range is influenced by factors such as the spindle’s dimensions and the intricacy of its bearing configuration. For instance, larger spindles or those with more complex bearing systems may require more extensive work, leading to higher repair costs.

It’s important to note that timely maintenance and addressing issues early can prevent more severe damage, potentially saving on more substantial repair expenses in the future. Regular inspections and prompt attention to any signs of wear or damage can help maintain spindle performance and longevity.

MZI Precision+3

MZI Precision+3

MZI Precision+3

3. Shaft Damage

A damaged shaft can be a major issue, potentially doubling the base repair cost. Experiencing shaft damage in a CNC spindle is among the most critical and costly issues you might face. In harsh cases, replacing the spindle shaft can cost up to $4,000, doubling the base repair price. This level of damage often necessitates a comprehensive evaluation to determine whether repair or full spindle replacement is the most cost-effective and efficient solution.

Given the significant investment and potential downtime associated with such repairs, it’s crucial to assess the extent of the damage and consult with experienced spindle repair professionals. They can provide detailed diagnostics and guide you through the best course of action to restore your equipment’s performance while optimizing costs.

MZI Precision+1

MZI Precision+1

4. Burned Stator

A burned stator—an essential component of your spindle’s electric motor—can result from factors like overheating, electrical faults, or prolonged heavy use. Addressing this issue is intricate and can be a significant investment, with repair or replacement costs typically ranging from $400 to $4,000, depending on the spindle type and damage extent.

MZI Precision

🔍 Understanding the Repair Process

1. Diagnostic Evaluation

The repair journey begins with a comprehensive assessment to determine the scope. This evaluation identifies whether the stator can be repaired or requires full replacement.

2. Repair vs. Replacement

Repair: include rewinding the stator coils and replacing the insulation. If the stator core is structurally sound with only minor, localized damage, repair is often a practical and cost-effective solution. However, if the core has sustained extensive damage or degradation, replacement becomes necessary to ensure reliable operation. This process is more labor-intensive and costly.

www.universalrewind.com +3  Plant Engineering  +3  motorrewindtexas.com +3

3. Additional Considerations

Other components, such as bearings or gripper assemblies, might also need attention, potentially increasing the overall repair cost.

MZI Precision+3

MZI Precision+3

MZI Precision+3

💡 Tips to Prevent Future Stator Damage

Regular Maintenance: Implement routine checks to identify early signs of wear or electrical issues.

Proper Usage: Avoid overloading the spindle and ensure it’s operated within recommended parameters.

Environmental Control: Maintain a clean and temperature-controlled environment to prevent overheating.

MZI Precision+1

5. Gripper Assembly Replacement

Gripper assemblies are crucial for securing the tool in place during operations. Worn-out or failed gripper assemblies must be replaced to maintain spindle precision. The cost for these components can vary significantly, ranging from $1,200 to $3,200, depending on the spindle model and manufacturer pricing.

MZI Precision+1  –  MZI Precision+1

6. Specialized Components (e.g., Mazak Spring)

Certain specialized components, like the Mazak spring, are known for their durability and precision. If a rebuild requires the replacement of such parts, the cost can be notably higher compared to standard components. For example, a Mazak spring can cost $3,000 on all sides $3,000.

MZI Precision

7. Bearing Price Fluctuations

Bearings play a vital role in machinery by reducing friction and ensuring smooth, precise rotation. They assist in shifting parts, allowing for Effective procedures and the important lifespan of equipment.  The price of bearings can fluctuate based on demand, availability, and geopolitical factors affecting raw material prices. This fluctuation can lead to a 10% to 30% variation in the overall repair cost.

MZI Precision+3  MZI Precision+3  MZI Precision+2

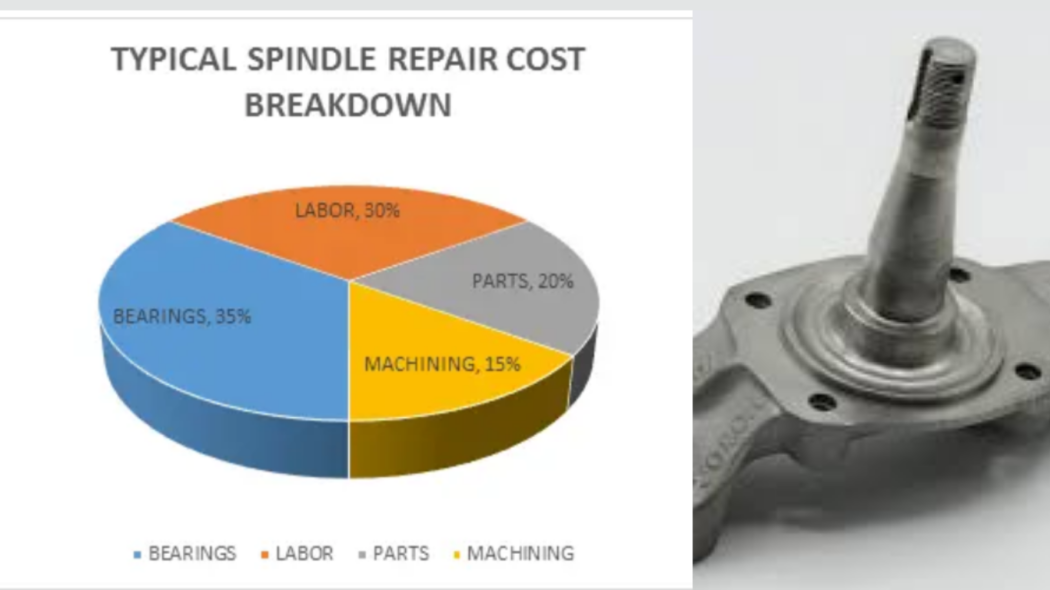

💡Summary of Spindle Potential Costs



Component/Issue	Estimated Cost Range
Tool Interface Damage	$700 – $1,600
Bearing Journal Issues	$400 – $1,400
Shaft Damage	Up to $4,000
Burned Stator	$400 – $4,000
Gripper Assembly	$1,200 – $3,200
Specialized Components	Around $3,000
Bearing Price Fluctuation	10% – 30% variation

• A burned stator can range from $400 to $4,000. (See an example) https://www.gmnusa.com/oem-spindle-repair-services/
• Gripper assemblies: $1,200 to $3,200
• One spring from Mazak: $3,000
• Bearing price fluctuation of 10% to 30%

If you have any questions, give us a call at 800.686.1679. A real person will answer the phone Monday–Saturday, 8 a.m.-4:30 p.m.

FAQ Section

1. How much does it cost to replace a spindle on a car?

On average, replacing a car spindle costs $400 to $700, including both parts and labor.

• Parts alone usually run $200–$400.

• Labor costs add another $150–$300, depending on your vehicle type and shop rates.
  👉 Luxury or performance vehicles may cost more because spindles are model-specific.

---

2. How much does it cost to repair CNC spindles?

CNC spindle repair is more complex, and pricing varies widely:

• Basic repair/rebuild: $1,000 – $4,000

• High-speed or precision spindle repairs: $5,000 – $10,000

• Full replacement: $10,000+ (for industrial-grade machines)
  👉 Most shops charge for inspection ($300–$500), which is usually applied toward repair costs if you proceed.

---

3. Can a spindle be repaired?

Yes, spindles can be repaired in many cases. The feasibility depends on the extent of the damage:

• Automotive spindles: Minor wear (like threads or bearings) may be serviceable, but cracks, bends, or severe damage usually require a full replacement.

• CNC spindles: Repairs often involve bearing replacement, taper grinding, balancing, or rewinding the motor. If the shaft is cracked or severely damaged, replacement is the only option.

---

4. How much does it cost to change spindles?

• Automotive spindle change: $350 – $800 (parts + labor).

• CNC spindle change: $5,000 – $20,000 depending on machine type and spindle size.
