Understanding the Mass Airflow Sensor (MAF): A Comprehensive Guide

In the intricate world of automotive engineering, numerous components work to ensure your vehicle operates efficiently. One such vital component is the Mass Airflow Sensor (MAF). This device plays a pivotal role in maintaining the delicate balance between air and fuel in your engine, ensuring optimal performance and fuel efficiency.

What is a Mass Airflow Sensor?

At its core, the Mass Airflow Sensor is an electronic device found between the air filter and the engine’s intake manifold. Its primary function is to measure the amount of air entering the engine. This data is crucial for the Engine Control Unit (ECU) to determine the precise amount of fuel to inject, achieving the ideal air-to-fuel ratio for combustion.

How Does the MAF Sensor Work?

The MAF sensor operates based on the hot wire principle. It features a thin platinum wire heated electrically and positioned in the air stream of the intake system. As air flows over this wire, it cools down, causing a change in its electrical resistance. The sensor’s electronics adjust the current to maintain a constant wire temperature and the amount of currently needed correlates directly with the mass of incoming air. This data is transmitted to the ECU, which modifies the fuel injection based on the information received. Most modern vehicles utilize the hot wire principle for their MAF sensors. Here’s a simplified breakdown of its operation:

A. Hot Wire Principle

The sensor contains a thin, electrically heated wire. As air flows over this wire, it cools down.

B. Temperature Monitoring

While the primary function of the MAF sensor is to measure air mass, it indirectly accounts for air temperature. Some MAF sensors incorporate an Intake Air Temperature (IAT) sensor within their housing to provide the ECU with comprehensive data, ensuring accurate fuel delivery adjustments based on both air mass and temperature.

Regular maintenance and prompt attention to any signs of MAF sensor issues, such as rough idling or decreased fuel efficiency, are essential for sustaining engine health and performance.

C. Current Adjustment

The sensor regulates the electrical current passing through the wire to keep the temperature steady.

D. Airflow Calculation

The amount of current required to keep the wire at a constant temperature correlates directly to the mass of the incoming air. This data is transmitted to the ECU, allowing it to modify fuel injection settings as needed.

This method ensures the engine receives the optimal air-fuel mixture, enhancing performance and efficiency.

Importance of the MAF Sensor

The Mass Airflow Sensor is indispensable for several reasons:

• Fuel Efficiency: By delivering precise information about incoming air, the ECU can fine-tune fuel injection, leading to better fuel economy
• Emission Control: Precise air-fuel mixtures result in cleaner combustion, reducing harmful emissions.
• Engine Performance: Ensures smooth acceleration and power delivery by maintaining the correct air-fuel balance.

Common Symptoms of a Faulty MAF Sensor

A malfunctioning MAF sensor can lead to various engine issues. Common signs include:

• Engine Hesitation or Jerking

If you notice your car hesitating or suddenly jerking during acceleration, it could be due to a faulty MAF sensor.

• Poor Fuel Economy

An incorrect air-fuel ratio can cause the engine to consume more fuel than necessary.

• Rough Idling

 The engine may idle roughly or even stall when the vehicle is stationary.

• Check Engine Light

A failing MAF sensor can trigger the check engine light on your dashboard.

Causes of MAF Sensor Failure

Several factors can lead to MAF sensor issues:

• Contamination: Dirt, dust, and debris can accumulate on the sensor, affecting its accuracy.
• Air Leaks: Leaks in the intake system can introduce unmeasured air, leading to incorrect readings.
• Electrical Issues: Faulty wiring or connections can disrupt the sensor’s signal to the ECU.

Diagnosing and Fixing MAF Sensor Issues

If you suspect a problem with your MAF sensor, follow these steps:

1. Visual Inspection: Check for obvious signs of damage or contamination on the sensor.
2. Use a Diagnostic Tool: Modern vehicles can provide error codes that pinpoint MAF sensor issues.
3. Cleaning the Sensor: If contaminated, carefully clean the sensor using a specialized MAF sensor cleaner.

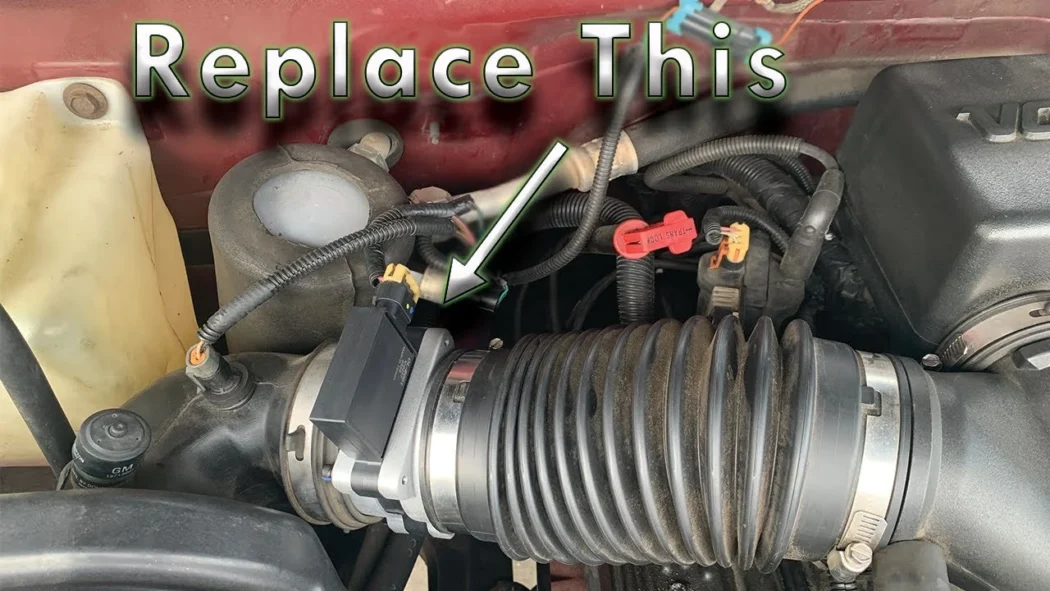

4. Replacement: If cleaning doesn’t resolve the issue, consider replacing the sensor with a high-quality unit.

Preventative Measures

To prolong the existence of your MAF sensor:

• Regular Maintenance: Replace air filters as recommended to prevent debris from reaching the sensor.
• Ensure Proper Seals: Check for and repair any leaks in the intake system.
• Use Quality Fuels and Oils: High-quality fuels and oils can reduce the buildup of contaminants.

Types of MAF Sensors:

There are primarily two types of MAF sensors:

1. Hot Wire MAF Sensors: The Mass Airflow Sensor (MAF) utilizes a heated wire to measure airflow accurately for engine performance

2. Hot Film MAF Sensors: The Mass Airflow Sensor (MAF) may employ a heated film element instead of a wire. Both types function on similar principles but differ in their specific designs and materials.

Reading and Voltage Specifications:

You can use a multimeter to check the output voltage of an MAF sensor. A correctly working MAF sensor typically generates a voltage ranging from 0.5 to 1.5 volts when the engine is idling. As engine RPM increases, this voltage should rise proportionally, indicating increased air intake. Deviations from these expected readings may suggest a malfunctioning sensor.

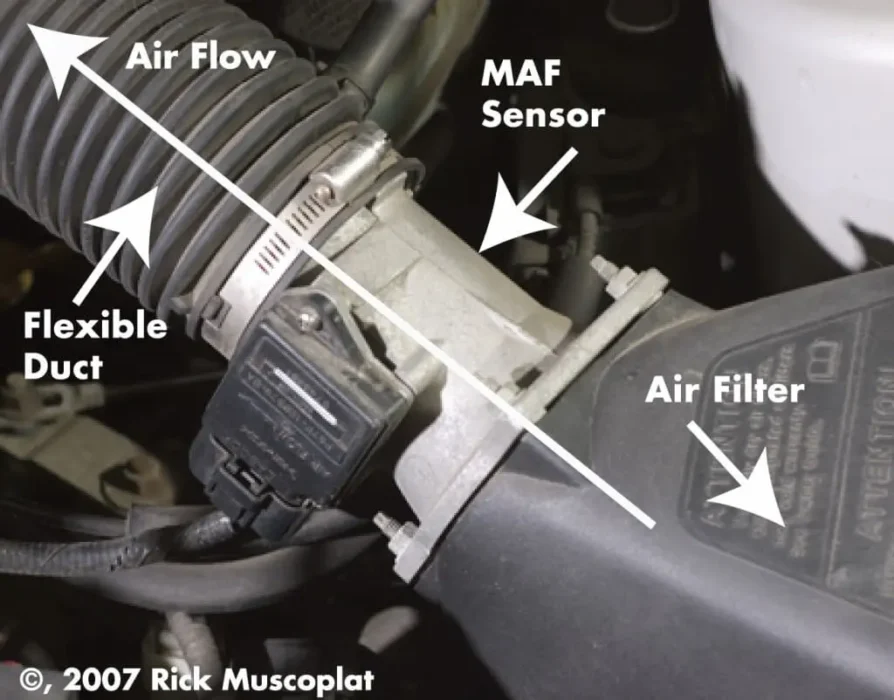

“Mass Airflow Sensor (MAF) installed in a vehicle engine.”

Conclusion

The MAF Sensor is critical to your vehicle’s engine management system. Understanding its function and recognizing the signs of failure can help maintain your vehicle’s performance and efficiency. Regular maintenance and prompt attention to issues can ensure your MAF sensor, and by extension, your engine, operates smoothly.

Frequently Asked Questions (FAQs)

Q1: What happens if I drive with a bad MAF sensor?

A faulty MAF sensor can lead to poor engine performance, increased fuel consumption, and higher emissions. It’s advisable to address the issue promptly to prevent further complications.

Q2: Can I clean my MAF sensor myself?

Yes, you can clean the MAF sensor using a specialized cleaner. Ensure the engine is off, disconnect the sensor, and handle it carefully to avoid damage.

Q3: How often should the MAF sensor be replaced?

There’s no specific interval for replacing the MAF sensor. However, regular inspections during routine maintenance can help identify issues early.

Q4: Will a bad MAF sensor throw a code?

Yes, a malfunctioning MAF sensor can trigger the check engine light and store error codes related to air intake issues.

Q5: Can a dirty air filter affect the MAF sensor?

Absolutely. A clogged or dirty air filter can allow contaminants to reach the MAF sensor, leading to inaccurate readings and potential sensor damage.

For more detailed information and resources on the Mass Airflow Sensor (MAF), visit reputable automotive websites or consult a certified mechanic.
